Grúa PROAIM 18ft Camera Crane Jib con Stand para Gimbals, Pan-Tilt & Fluid Head

Grúa PROAIM 18ft Camera Crane Jib con Stand para Gimbals, Pan-Tilt & Fluid Head

Precio habitual ₡ 100.000,00
Precio habitual ₡ 0,00 Precio de oferta ₡ 100.000,00
Oferta Agotado
Montaje
Cantidad

PROFESSIONAL. STRONG. LIGHT. SMOOTH

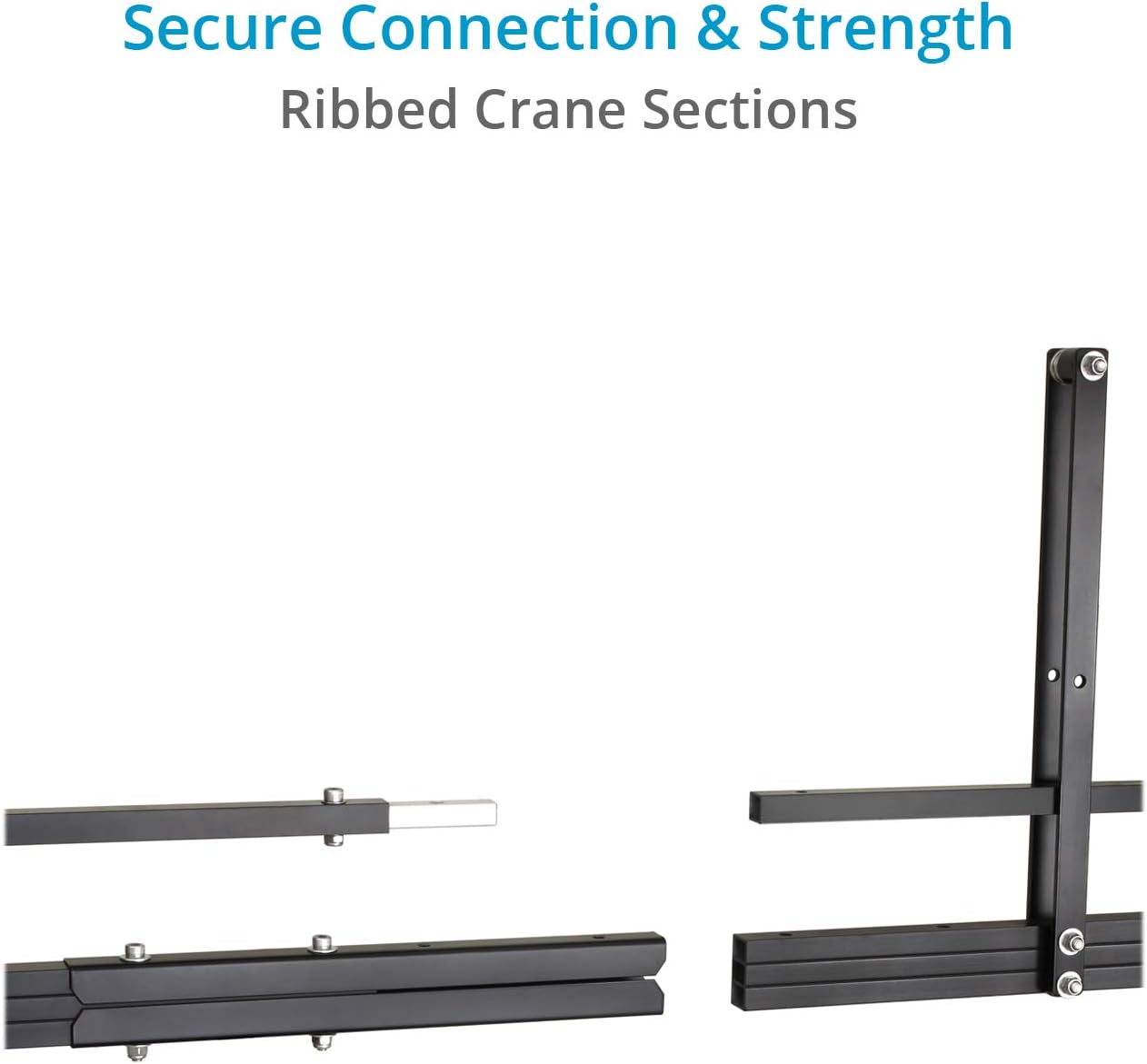

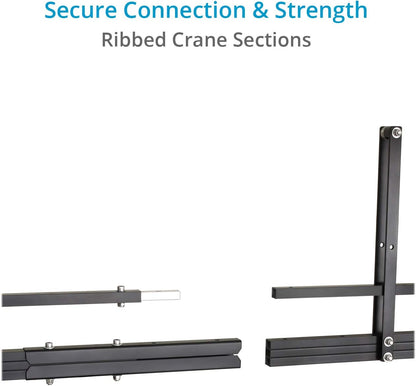

Proaim 18ft Camera Jib Arm is designed for videographers and filmmakers who need a lightweight and ultra-portable Crane system. The Jib has many great features such as a two-arm design, camera mount tilt control, ribbed jib sections & monitor mounting - making it one of the most value for money jib. It allows capturing smooth, dynamic sweeping pans and camera rise. High strength Aluminum construction with unbeatable stability holds camera setups up to 8kg / 17.6lb.

EXPERTLY CRAFTED JIB

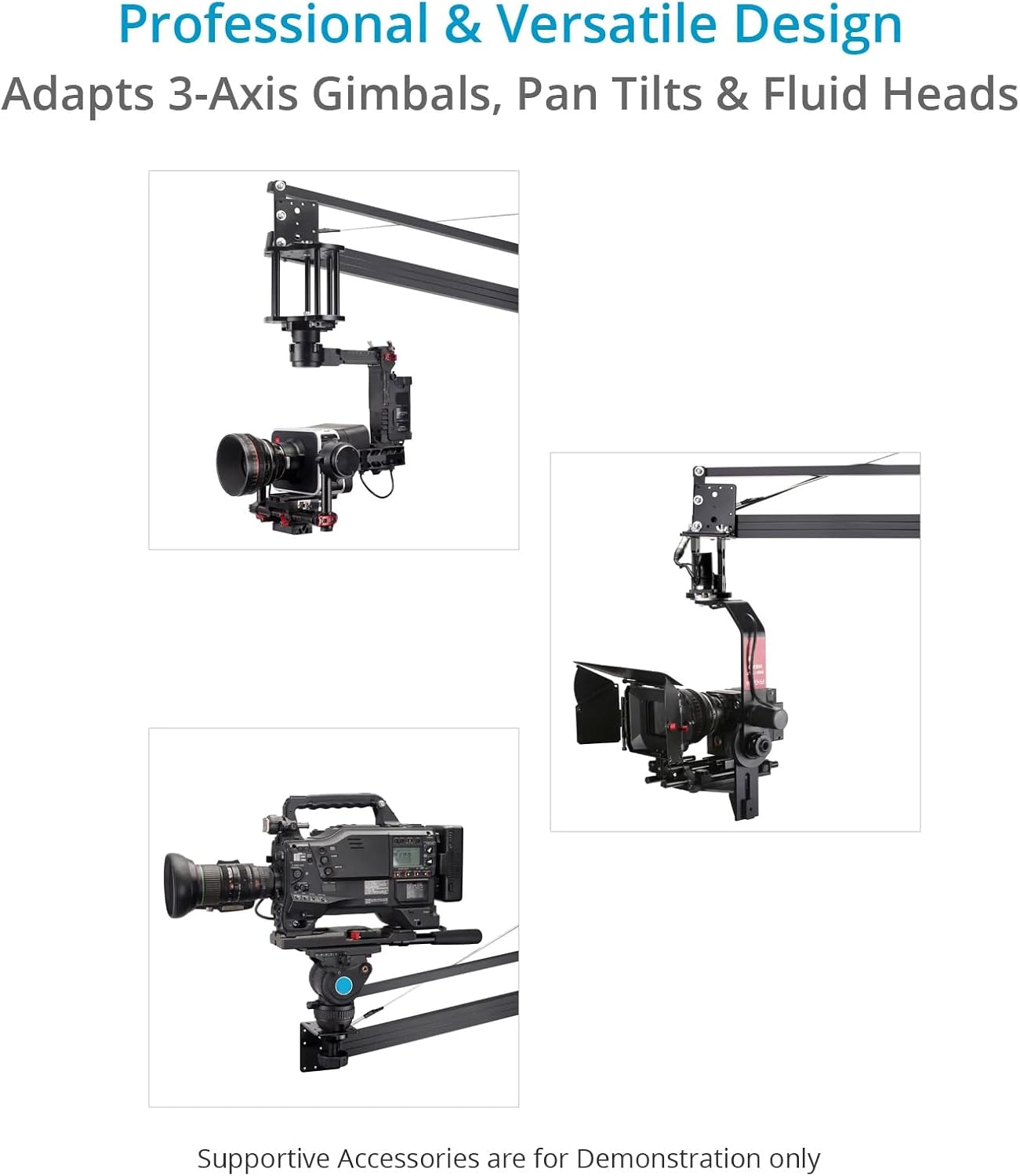

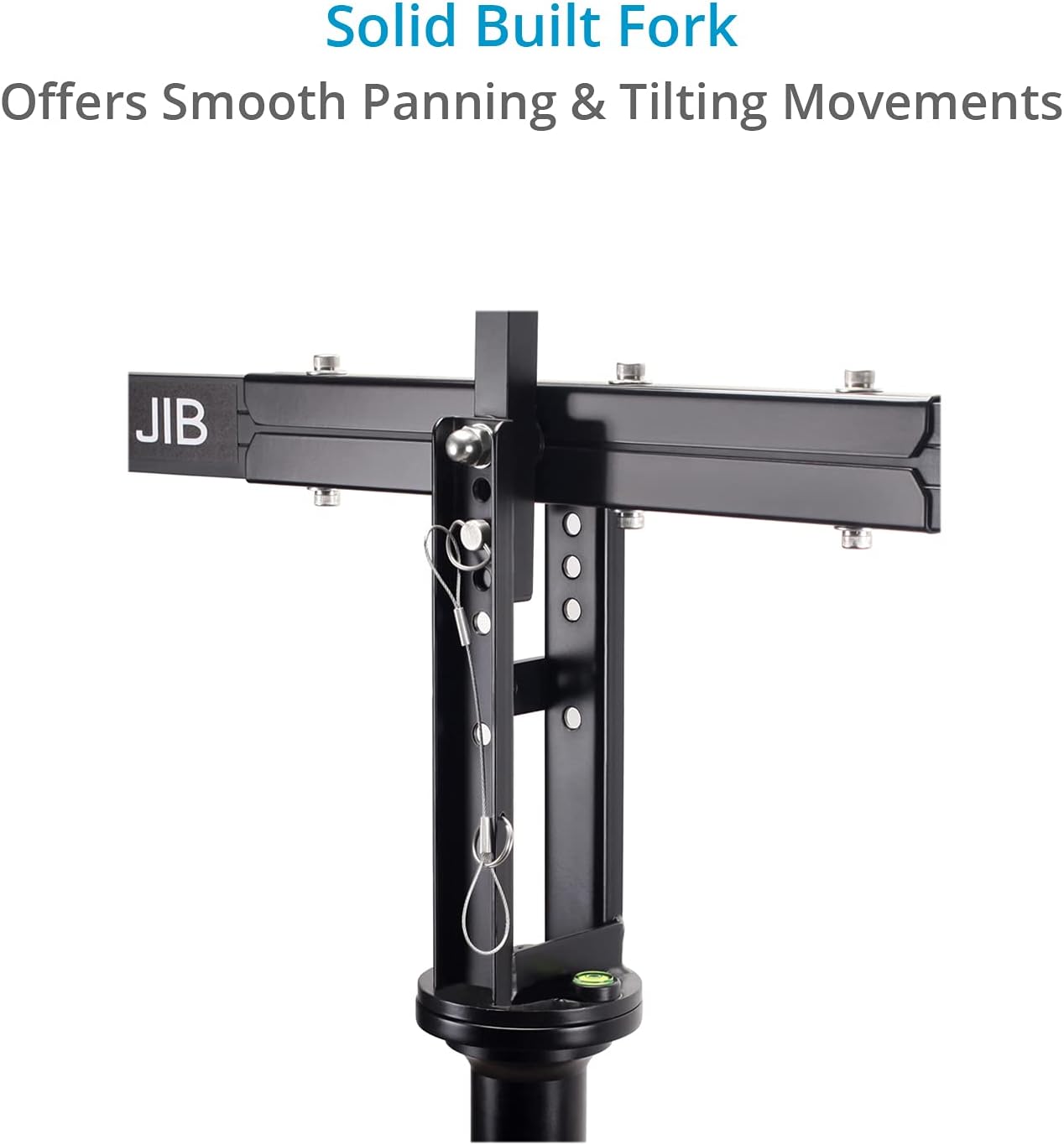

The Jib has Universal front mounting to adapt Pan Tilt Heads and 3-Axis Gimbal Stabilizers. Two Arm Design offers enhanced strength & stability to the entire jib setup. The Jib comes with a 1/4"-20 hole allowing for Quick LCD monitor attachment. Camera Mount Tilt Control offers both Auto tilt mode and a Manual tilt mode with a control handle. Central Fork with thrust roller bearings absorbs shock loads for smooth jerk free jib movements. Hi-tensile weight closers keep the weight discs intact for perfect balance.

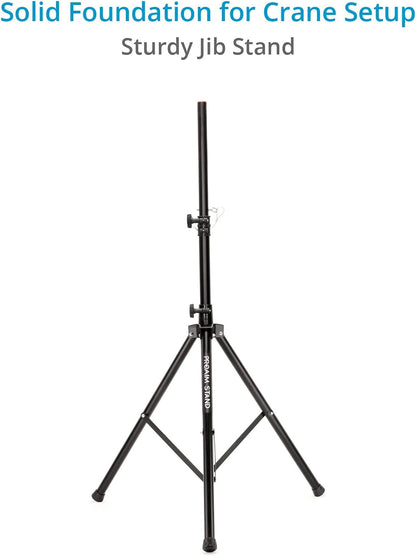

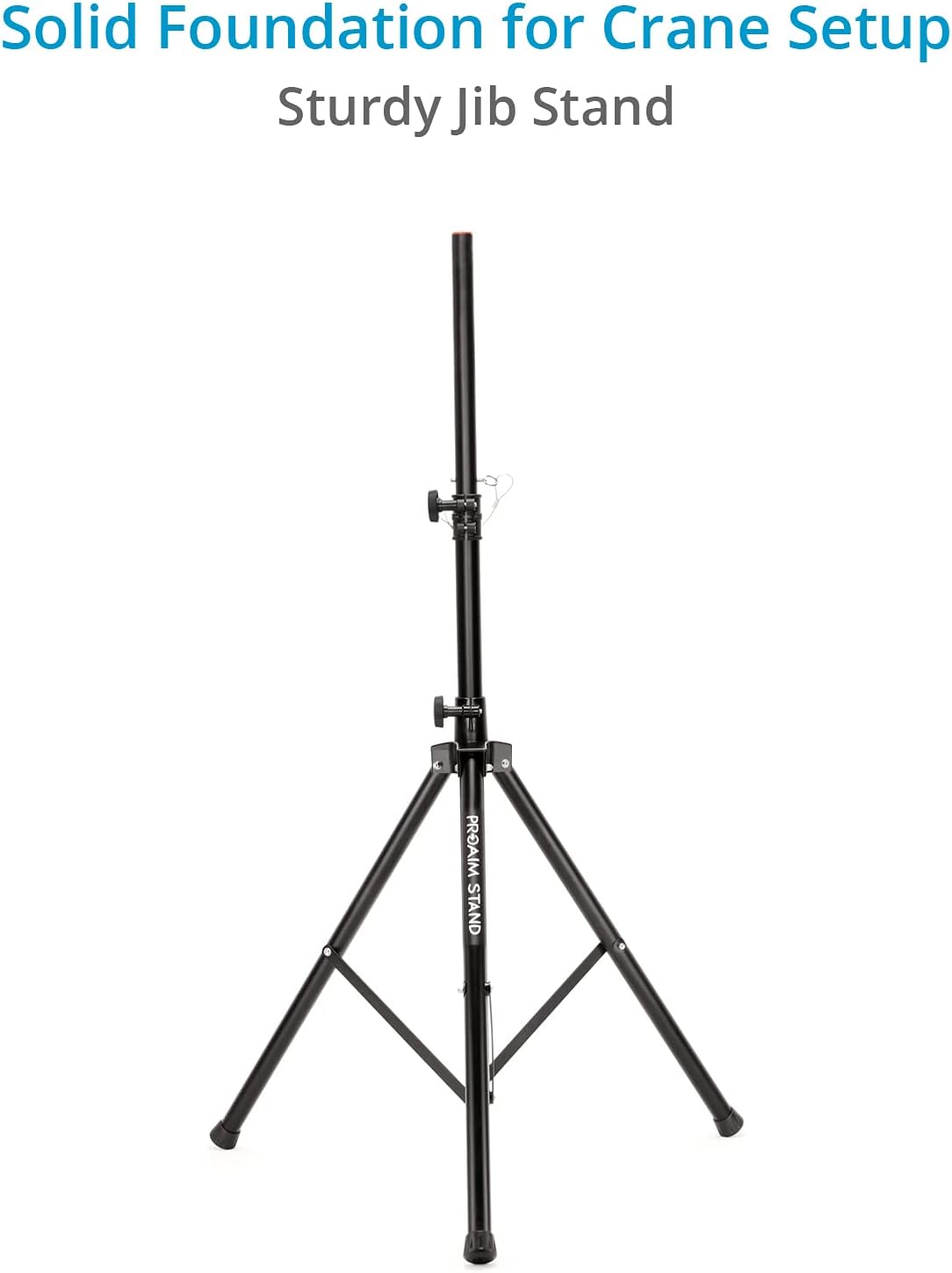

SOLID FOUNDATION FOR THE JIB

This excellent Jib Stand is sturdy enough to support the Crane when it's fully loaded and weighed. It combines high-quality materials, technological expertise and superior design to provide the ideal support needed to take the perfect shots. The Jib Stand supports an incredible payload of up to 90kg / 200lb and is highly stable in use.

SPECIFICATIONS

18' JIB



  • Construction: (i) Jib Arm: High-grade CNC Aluminum, (ii) Cable System: Stainless Steel, (iii) Weight Holder Rod: Steel, (iv) Weight Closures: Steel
  • Load Capacity: up to 8kg / 17.6lb
  • Balancing: (i) Self-Balance: 25kg / 55lb, (ii) Camera weight: 1kg (x 4kg Counter weight) + 25kg, 1lb (x 4lb Counter weight) + 55lb

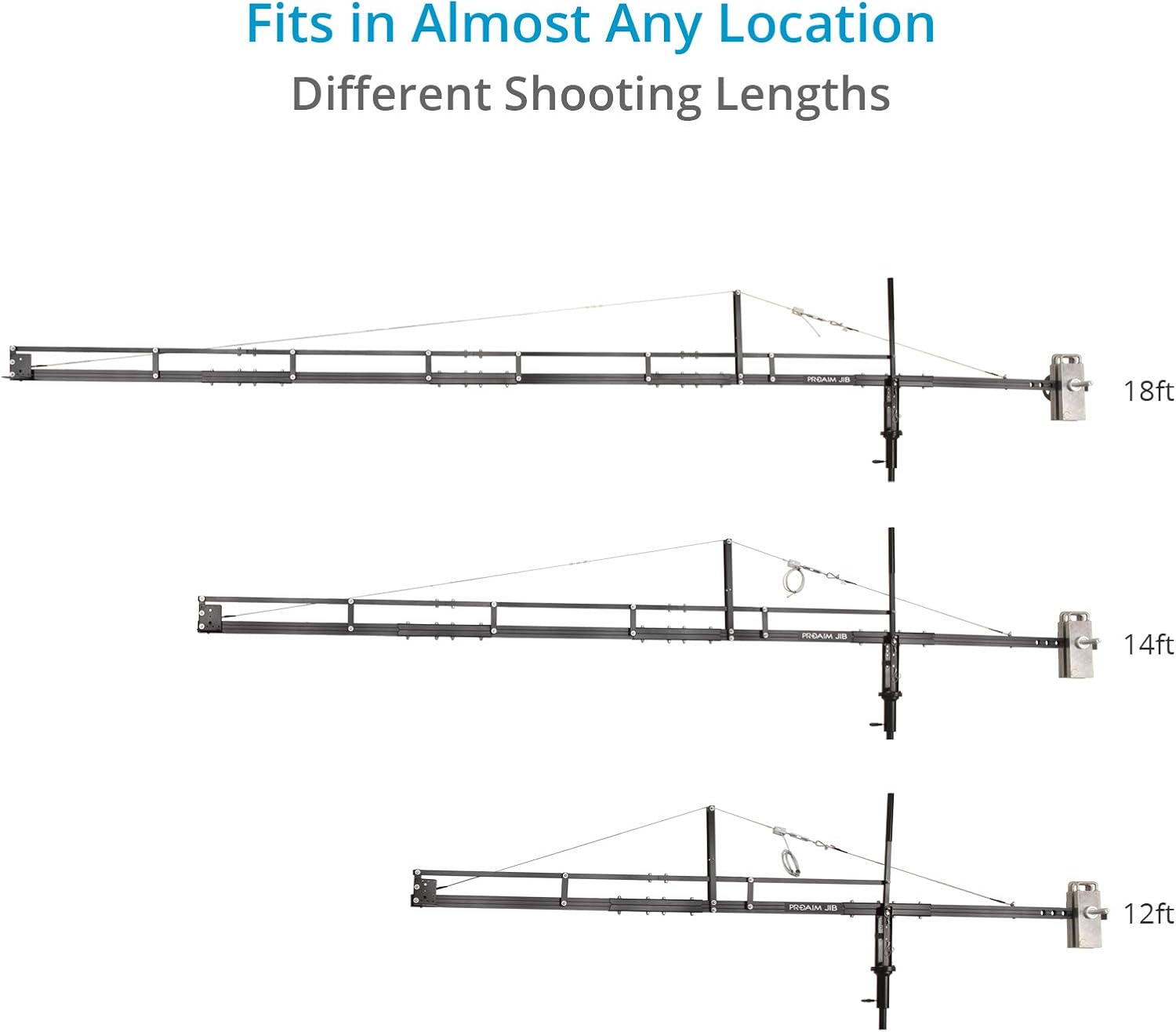

  • Variable Lengths: 18ft
  • Jib Length: (i) Height Range from ground level: 19ft when stand height adjusted at 5ft, (ii) Length from tripod to camera mount: 13.6ft, (iii) Total jib arm length: 17ft
  • Jib Arm: (i) Shape: Rectangle, (ii) No. of Sections: 5, (iii) Length: 3.5' each, (iv) Jib Section Jointers: Silver Aluminum
  • Tilt Lock: No
  • Pan Lock : No

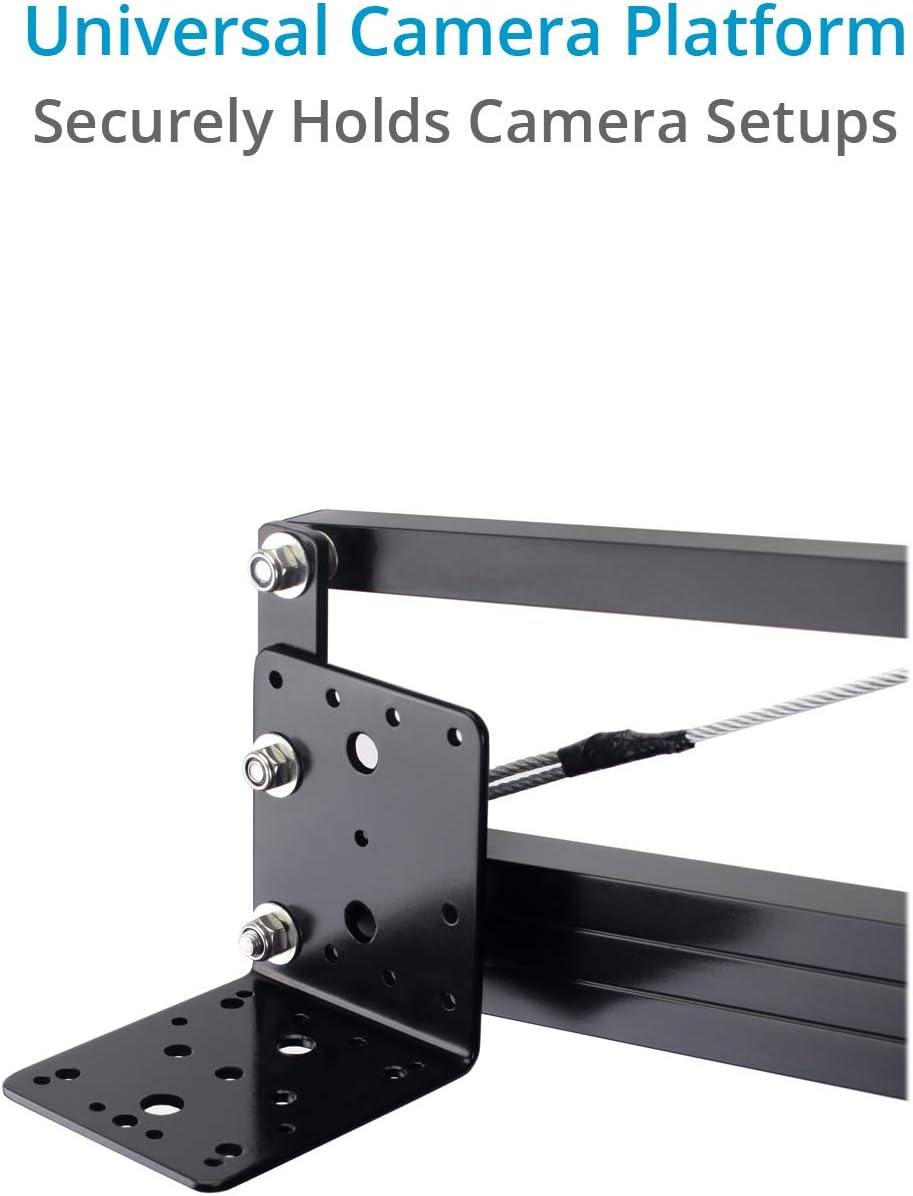

  • Camera Platform: (i) Camera Mount Plate: Rectangle (10.5 x 9cm), (ii) Levelling: By Stress Cable (with Adjustable Steel Hook) (iii) Camera Platform Tilt: up to 270 degree.
  • Weight Holder Rod: (i) Length: 355mm, (ii) Diameter: 25mm, (iii) Weight Closures: 2 pieces
  • LCD Mounting: Yes
  • Weight: 15kg / 33lb

JIB STAND

  • Construction: High-grade Steel, Powder-coated
  • Load Capacity:up to 90kg / 198lb
  • Length: (i) Maximum: 81", (ii) Minimum: 48"
  • Collapsible Height: 46"
  • Diameter of Stand Tubes: 33mm
  • Base Spread: 32"- 52"
  • Safety Pin: Yes
  • Weight: 4.5kg / 10lb

IN THE BOX

  • 18ft Professional Camera Crane (P-18)
  • Jib Stand (P-JS)

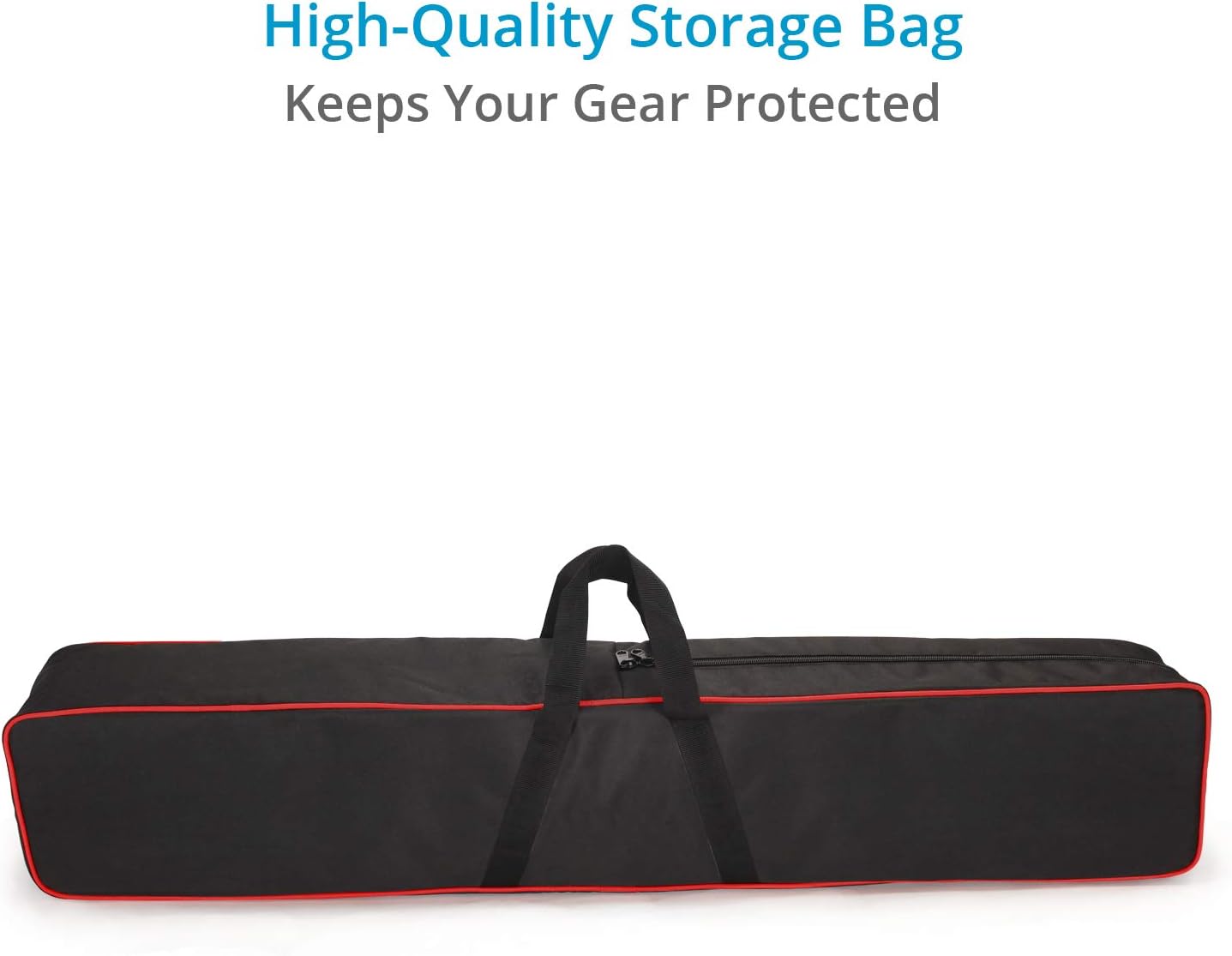

  • Storage Bag
